Constant volume combustion vessel (CVCV)
Constant Volume Combustion Vessel
Oxford's TPSRG has a long history of laminar burning velocity measurements using a spherically expanding flame in a constant volume vessel. Refined over a number of years and research projects, Oxford's Constant Volume Combustion Vessel (CVCV), euphemistically known in-house as 'the bomb', is housed within a temperature controlled chamber and features bespoke mixture preparation and data acquisition systems. The bomb is fitted with two 40 mm diameter fused silica windows to allow optical access which are typically used with a dedicated Schlieren photography system.

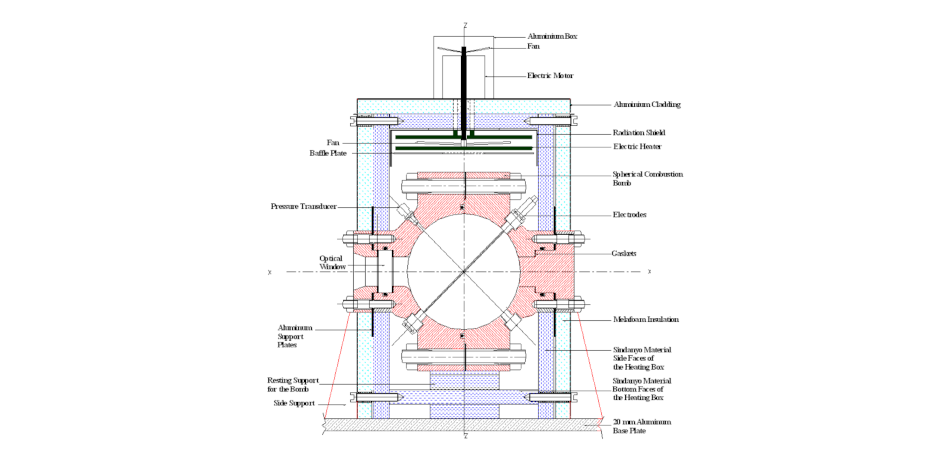

Combustion 'bomb' rig and environmental chamber
- Spherical vessel 160 mm diameter
- 34 bar P (max)
- Two diametrically opposed 40 mm diameter fused silica windows (can be replaced with blanking sections if optical access is not required)
- Temperature controlled enclosure
- Variable spark energy ignition system
- National Instruments DAQ with bespoke Labview-based control system
- Bespoke mixture preparation system

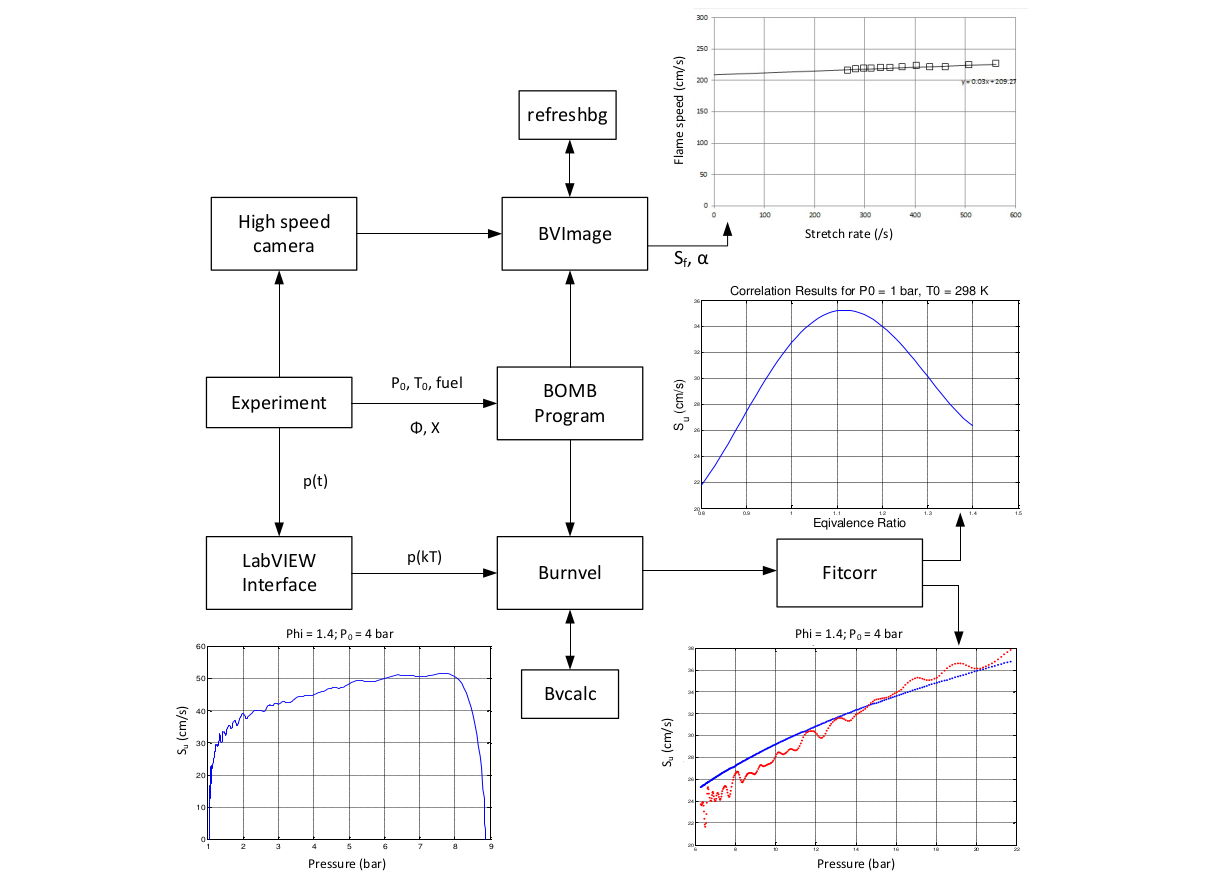

BVICS (Burning Velocity Integrated Calculation System)
- In-house data processing suite
- Constant pressure and constant volume analysis tools
- Multi-zone combustion model
- Automatic cellularity detection
